Summary

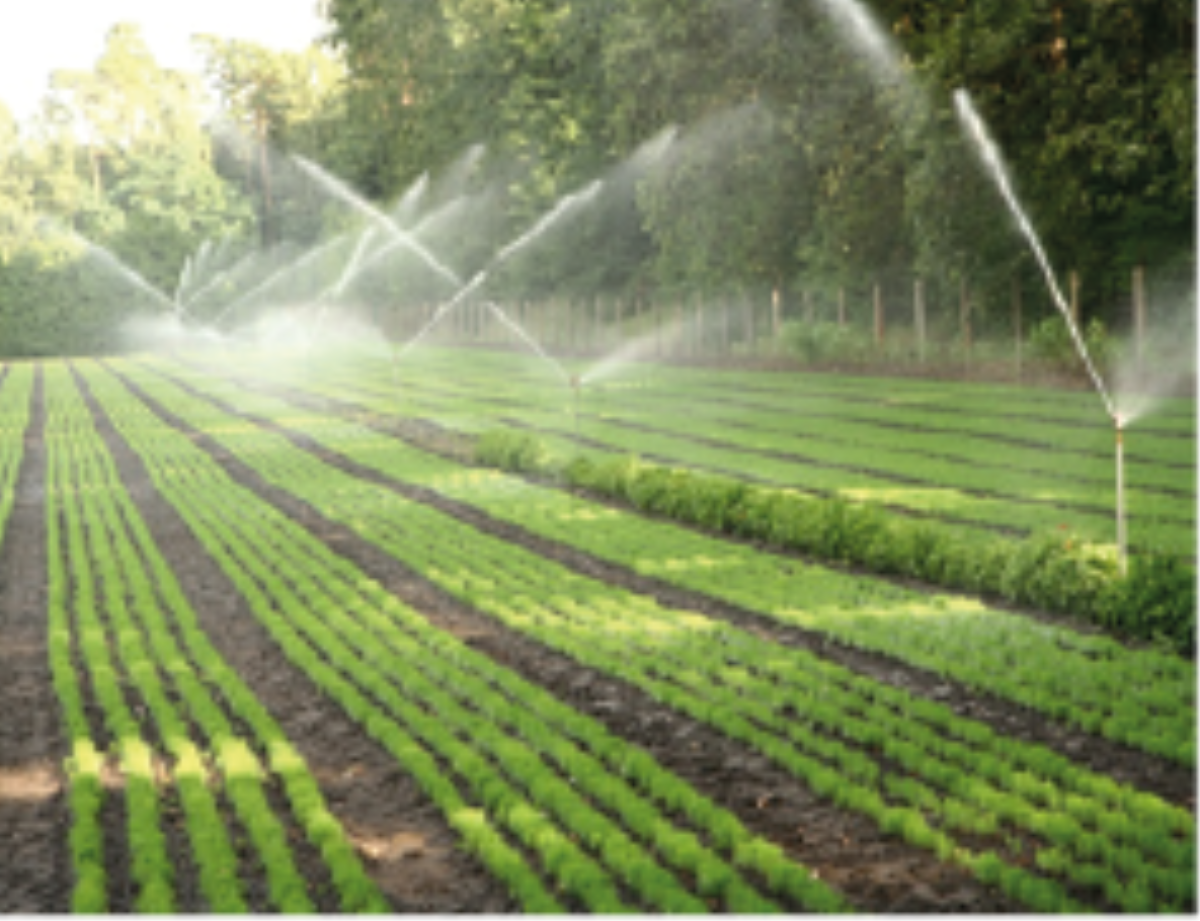

Project located on Turkeys South-West Region in Denizli province. Project water source is Yenicekent Main Channel that delivered water from Cindere Dam. Project have 3 Phase pumping. Main gravity pipe take water from the Curuksu Main Channel approximately irrigate 1370 ha of irrigation land. In half way of main pipe line Phase 1 pump station is located. Phase 1 pumping irrigate total 830 ha land. At the end of Phase 1 there is another pump station located that have feed Phase 2 irrigation. Phase 2 have 462 ha irrigation land. And half way of Phase 2 main pipe line there is Phase 3 pumping station located. So last Phase irrigate 200 ha land. In project formulation creek rehabilitation needed for drainage. Akgedik and Ballik Creeks needs to rehabilitation against drainage form irrigation surface. In the project all system made of pressure pipe network. Pipe diameters various in 2300 to 110 mm. Pipe materials are steel, CTP and HDPE100. In the region Turkey’s most important irrigation corps like olive, pomegranate, fig grown.
Phase 1
Initial Head : 209.90 m
Irrigation Area (gross) : 1,252.50 ha
Irrigation Module (Buldan Unit) : 0.62 l/s/ha
Irrigation Module (Buharkent Unit) : 0.88 l/s/ha
Total Main Pipe Length : 34,419.24 m
Total Secondary Pipe Length : 32,990.91 (m)
Initial Diameter : 2100 mm
Initial Mass Flow : 2,847 l/s
Pipe Material : HDPE100, CTP, Steel
Phase 2
Initial Head : 323.00 m
Irrigation Area (gross) : 947.40 ha
Irrigation Module : 0.62 l/s/ha
Total Main Pipe Length : 11,729.16 m
Total Secondary Pipe Length : 27,108.24 (m)
Initial Diameter : 1300 mm
Initial Mass Flow : 1517 l/s
Pipe Material : HDPE100, CTP
Phase 3
Initial Head : 395.00 m
Irrigation Area (gross) : 461.40 ha
Irrigation Module : 0.62 l/s/ha
Total Main Pipe Length : 5,872.70 m
Total Secondary Pipe Length : 12,956.89 m
Initial Diameter : 1000 mm
Initial Mass Flow : 668 l/s
Pipe Material : HDPE100, CTP
Phase 3
Initial Head : 465.00 m
Irrigation Area (gross) : 200.50 ha
Irrigation Module : 0.62 l/s/ha
Total Main Pipe Length : 3,074.70 m
Total Secondary Pipe Length : 4,577.37 m
Initial Diameter : 400 mm
Initial Mass Flow : 219 l/s
Pipe Material : HDPE100
Pumping Station 1
Water Intake : A Main Pipe Line
Pumping Location : Reg. Basin, Night Storage V=43500 m³
Total Discharge : 1.48 m³/s
Pumping Head : 123.68 m
Unit Number : 4
Installed Power Capacity : 2520 kW
Surge Protection : Surge Vessel V=36 m³
Pump Type : Horizontal Shaft, Centrifugal, Booster
Pump Unit Power : 630 kW
Pump Stroke : 1493 rpm
Pump Efficiency : % 83.5
Pump Unit Weight : 5088 kg
Penstock Diameter : 1000 mm
Penstock Length : 940 m
Penstock Nominal Pressure : 25 bar
Penstock Corrosion Protection : Outside PE lining, inside epoxy lining
Transformer Number : 2
Transformer Type : ONAN
Transformer Nominal Power : 300+160 kVA
Transformer Nominal Voltage : 31.5/6.3-31.5/0.4 kV
Transformer Frequency : 50 Hz
Transmission Line Voltage : 31.5 Kv
Pumping Station 2
Water Intake : B3 Pipe Line
Pumping Location : Regulation Basin V=390.90 m³
Total Discharge : 0.652 m³/s
Pumping Head : 82 m
Unit Number : 3
Installed Power Capacity : 750 kW
Surge Protection : Surge Vessel V=12 m³
Pump Type : Horizontal Shaft, Centrifugal, Booster
Pump Unit Power : 250 kW
Pump Stroke : 1490 rpm
Pump Efficiency : % 83.5
Pump Unit Weight : 2328 kg
Penstock Diameter : 700 mm
Penstock Length : 665.25 m
Penstock Nominal Pressure : 25 bar
Penstock Corrosion Protection : Outside PE lining, inside epoxy lining
Transformer Number : 1
Transformer Type : ONAN
Transformer Nominal Power : 1000 kVA
Transformer Nominal Voltage : 31.5/0.4 kV
Transformer Frequency : 50 Hz
Transmission Line Voltage : 31.5 Kv
Pumping Station 3
Water Intake : C5-3 Pipe Line
Pumping Location : Regulation Basin V=262.50 m³
Total Discharge : 0.214 m³/s
Pumping Head : 77 m
Unit Number : 3
Installed Power Capacity : 270 kW
Surge Protection : No need to protection
Pump Type : Horizontal Shaft, Centrifugal, Booster
Pump Unit Power : 90 kW
Pump Stroke : 1490 rpm
Pump Efficiency : % 83.5
Pump Unit Weight : 1018 kg
Penstock Diameter : 500 mm
Penstock Length : 653 m
Penstock Nominal Pressure : 25 bar
Penstock Corrosion Protection : Outside PE lining, inside epoxy lining
Transformer Number : 1
Transformer Type : ONAN
Transformer Nominal Power : 400 kVA
Transformer Nominal Voltage : 31.5/0.4 kV
Transformer Frequency : 50 Hz
Transformer Neutral Line : Exist
Transmission Line Voltage : 31.5 Kv
Tunnel
Tunnel Length : 306 m
Tunnel Diameter : 3000 mm
Maximum Depth : 47.84 m
